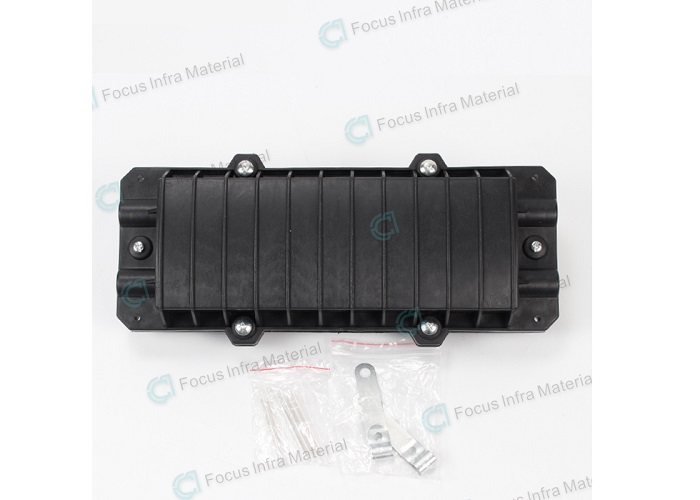

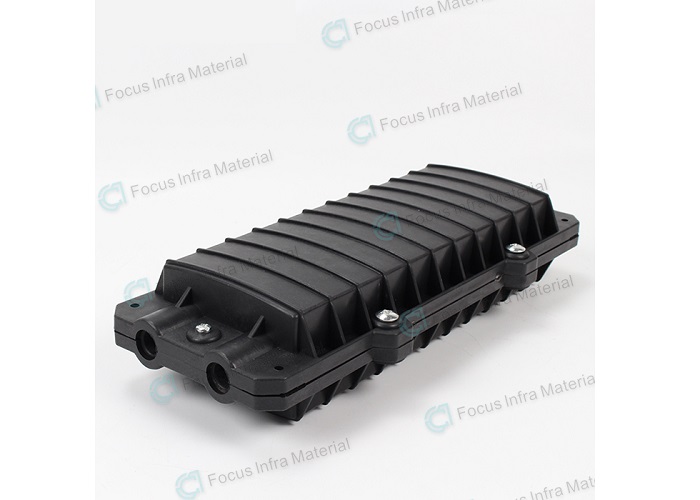

12 Core Horizontal Type Outdoor Aerial Dome Fiber Optic Splicing Closure

Model Number: FS-J-011
Scope Of Application: 12 Core
Cable Port: 2 Inlets 2 Outlets
Protection Level: IP 65

12 Core Horizontal Type Outdoor Aerial Dome Fiber Optic Splicing Closure


Description:

  12 Core Horizontal Type Outdoor Aerial Dome Fiber Optic Splicing Closure, also known as 12 Core Horizontal Type Outdoor Aerial Dome Fiber Optic Splicing Joint Box, is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected. 12 Core Horizontal Type Outdoor Aerial Dome Fiber Optic Splicing Closure is used for the protective connection and fiber distribution between two or more optical cables, it is Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network.



Features:

1. According to the appearance structure can be divided into cap cable joint box and horizontal cable joint box;

2. According to the optical cable laying method, overhead, pipeline (tunnel) and direct burial types;

3. According to the optical cable connection mode is divided into direct connection and differential connection;

4. There are thermal shrinkage seal types and mechanical seal types as sealed.

5. Fiber optic splice closures are widely apply for the connecting of optical cable.

6. Easy and fast to fix fiber cable
7. Easy and fast to increase and reduce.

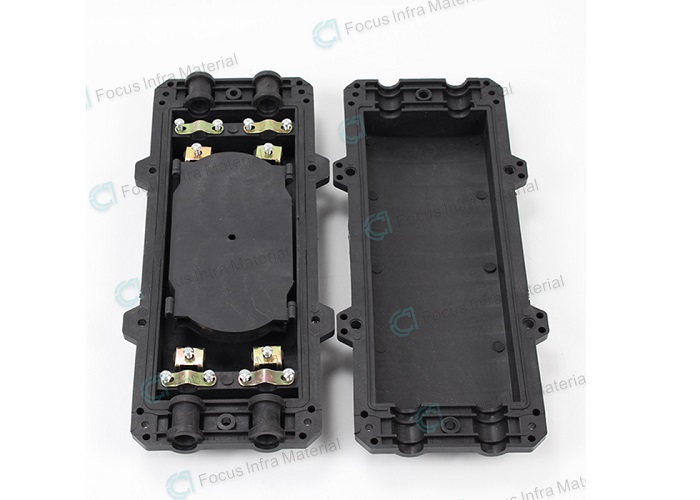

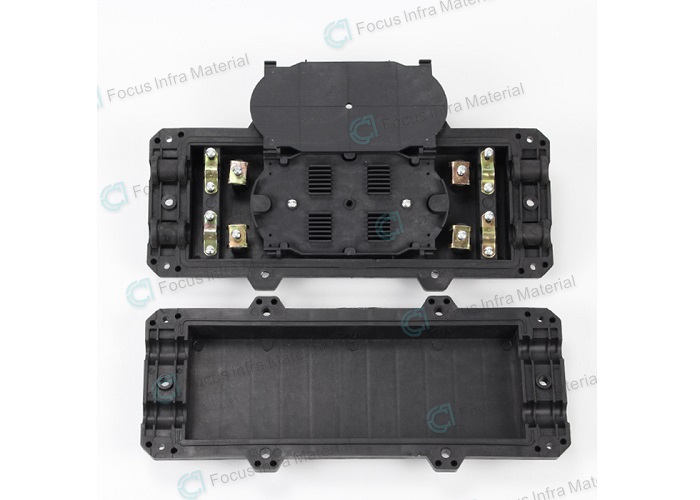

8. The closure is spacious enough for winding and storing fibers



Specifications:

ItemsFeatures
Environmental Temperature -40ºC~+60ºC
Air Pressure 70~106KPa
Tensile Strength >1000N
Pressure >2000N/10cm²/min
Insulation Resistance >2×104MΩ
Voltage Resistance under 15KV DC and 1 min, no puncture, no arc-over
