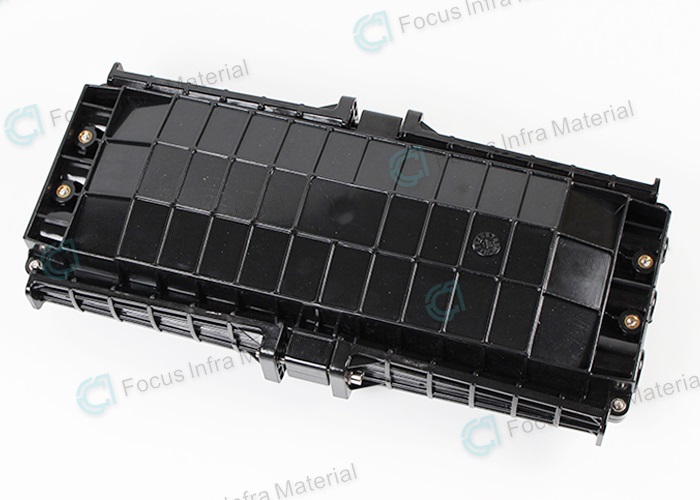

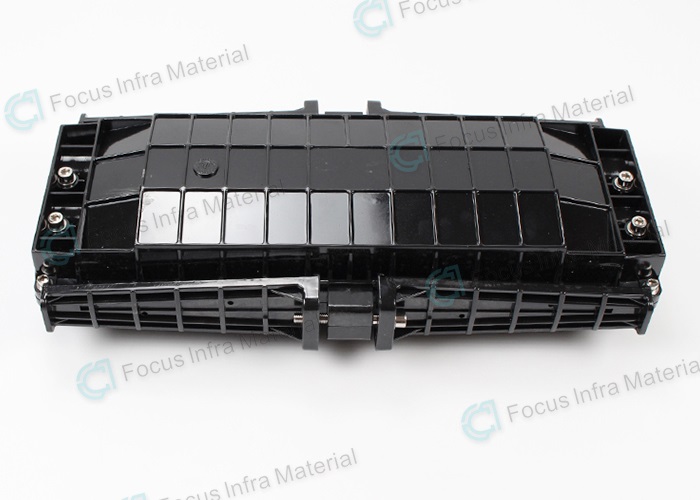

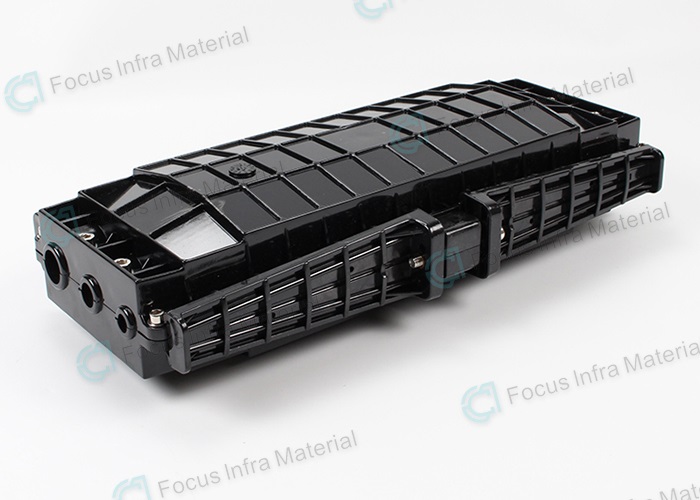

Horizontal Type 3 Inlets 3 Outlets 96 Core Fiber Optical Cable Joint Enclousre

Model Number : FS-J-009
Cable Port: 3 Inlets 3 Outlets
Scope Of Application: 12 Core To 72 Core
Product Size: 445*220*105mm

Description:



  Horizontal Type 3 Inlets 3 Outlets 96 Core Fiber Optical Cable Joint Enclousre, also known as Horizontal Type 3 Inlets 3 Outlets 96 Core Fiber Optical Cable Joint Enclousre Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. Horizontal Type 3 Inlets 3 Outlets 96 Core Fiber Optical Cable Joint Enclousre are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network.



Features:

Ageing resistance & ultraviolet radiation resistance
Advanced internal structure design
Easy and fast to fix fiber cable
The closure is spacious enough for winding and storing fibers
Grouping function: 3 inlet 3 outlet can meet most requirements

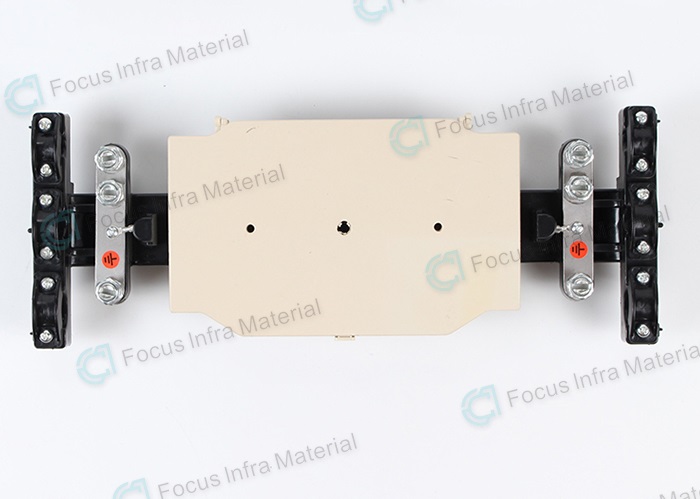

Splice tray: using cascading structure, no need to take other splice tray when do operation

IP68 Water-proof design for outdoor uses;

The application of temperature: -40℃~60℃







Specification:



Product name Horizontal Type Vertical Fiber Optic Splice Box
Protection level IP68
Scope of application 12 core to 96 core
Gross weight 2.9 kg
Main material PC alloy
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N
