Model Number : FS-J-020
Cable Port: 2 Inlets 2 Outlets
Scope Of Application: 12 Core To 24 Core
Product Size: 220*45mm

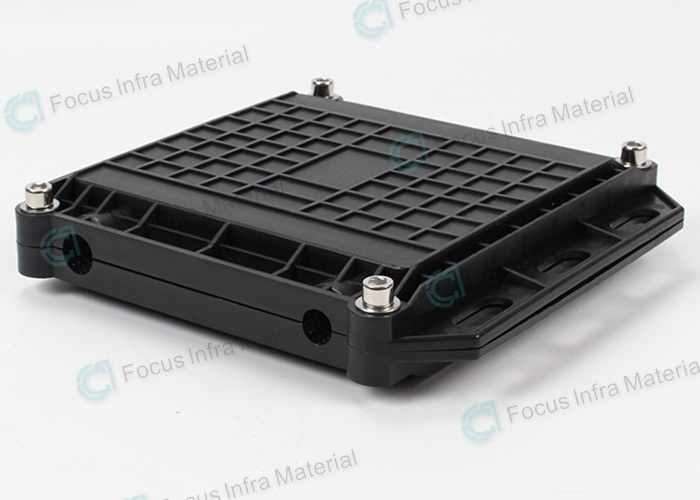

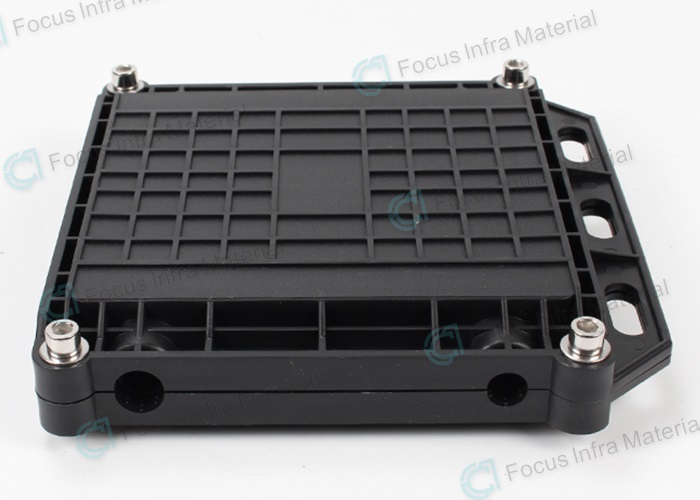

24 Core Fiber Splicing 2 Inlets 2 Outlets Outdoor Mini Aerial Dome Square Cable Joint Box
Description:
According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. 24 Core Fiber Splicing 2 inlets 2 outlets Outdoor Mini Aerial Dome Square Cable Joint Box, also known as 24 Core Fiber Splicing 2 inlets 2 outlets Outdoor Mini Aerial Dome Square Cable Joint Closure, is the place where the end of optical cable is connected. 24 Core Fiber Splicing 2 inlets 2 outlets Outdoor Mini Aerial Dome Square Cable Joint Box are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.
Specification:
Product name | 12 core to 24 core Dome Square Cable Joint Box |
Protection level | IP66 |
Scope of application | 12 core to 24 core |
Gross weight | 1 kg |
Main material | ABS |
Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
Ambient temperature | - 40 °C ~ + 60 °C |
Service life | ≥20 years |
Application scope | FTTH FTTB FTTX Network |
Atmospheric pressure | 70kPa~106kPa |
Insulation resistance | >2*10MΩ/500V(pc) |
Tensile strength | >1200N |
Features:
IP66 Water-proof design for outdoor uses;
Grouping function: 2 inlet 2 outlet can meet most requirements;

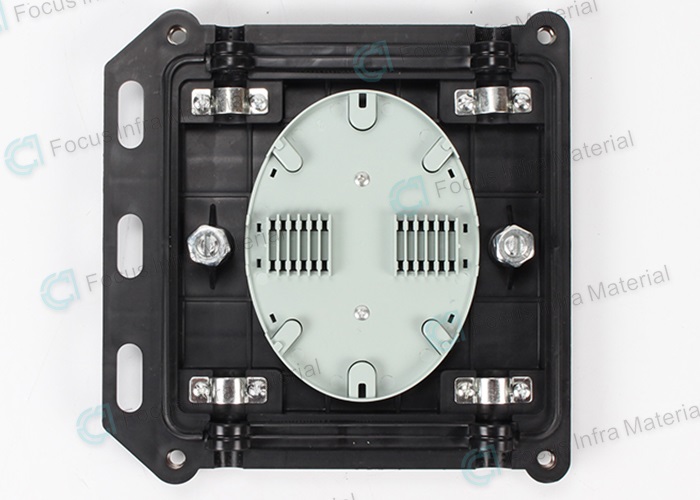

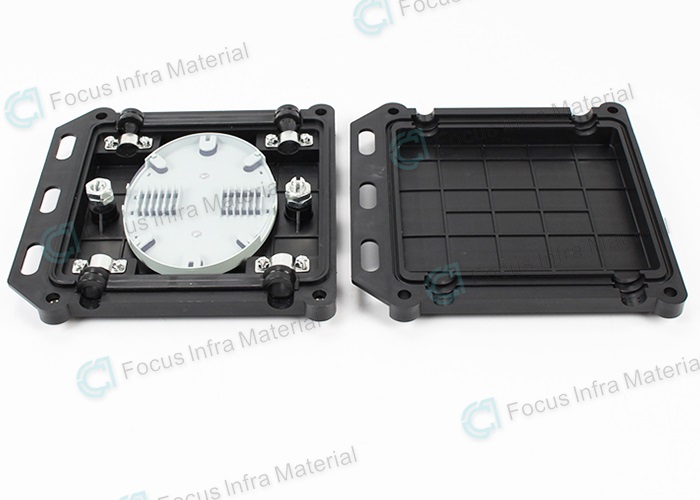

Splice tray: using cascading structure, no need to take other splice tray when do operation;
