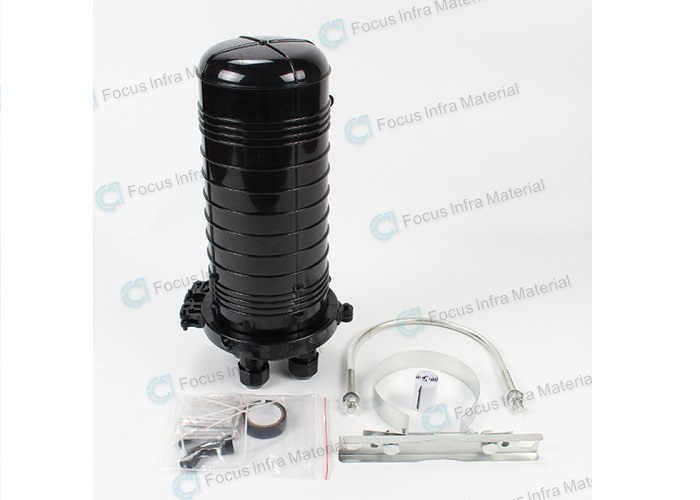

FTTH 2 Inlets 2 Outlets Plastic Dome Type Vertical Pipeline Buried Duct Mounting Fiber Optical Splice Closure

FTTH 2 Inlets 2 Outlets Plastic Dome Type Vertical Pipeline Buried Duct Mounting Fiber Optical Splice Closure

Model Number : FS-J-008

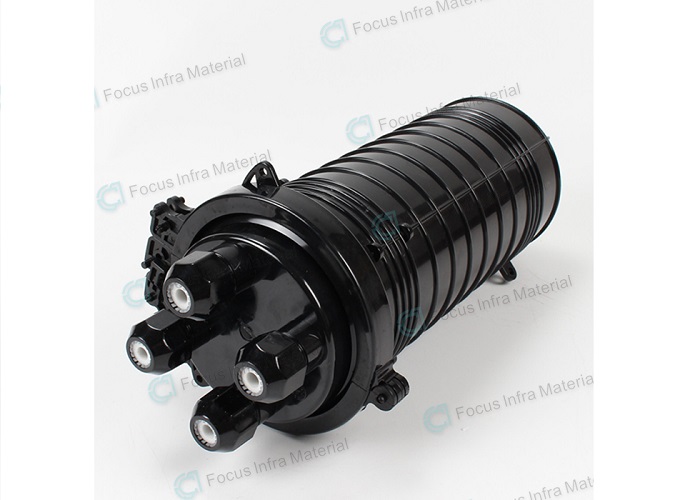

Cable Port: 2 Inlets 2 Outlets
Scope Of Application: 12 Core To 72 Core
Product Size: 430*215mm

Description:

FTTH 2 Inlets 2 Outlets Plastic Dome Type Vertical Pipeline Buried Duct Mounting Fiber Optical Splice Closure, also known as FTTH 2 Inlets 2 Outlets Plastic Dome Type Vertical Pipeline Buried Duct Mounting Fiber Optical Joint Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature.

Features:

Ageing resistance & ultraviolet radiation resistance
Advanced internal structure design
Easy and fast to fix fiber cable

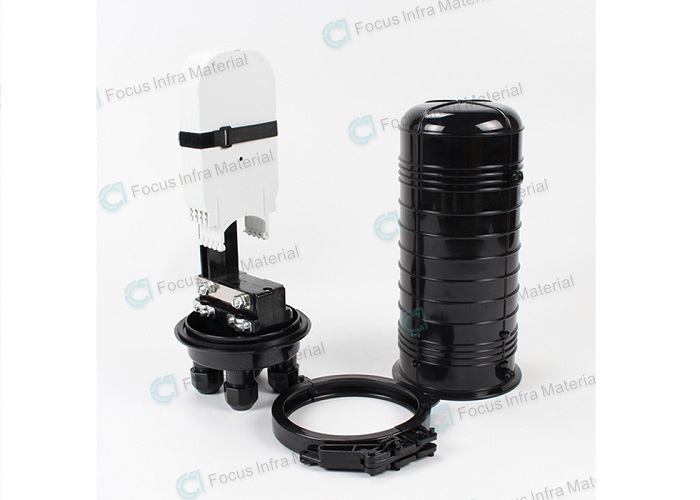

The closure is spacious enough for winding and storing fibers
Grouping function: 2 inlet 2 outlet can meet most requirements

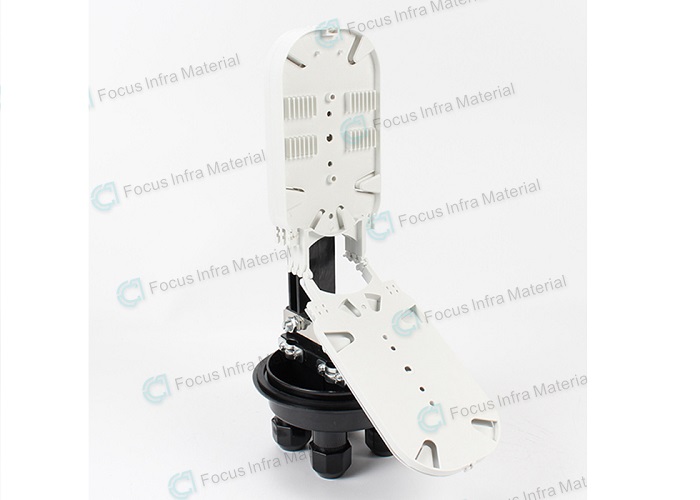

Splice tray: using cascading structure, no need to take other splice tray when do operation

Specification:

Product name	Dome Type Vertical Fiber Optic Splice Box
Protection level	IP68
Scope of application	12 core to 72 core
Gross weight	2.5 kg
Main material	PC
Scope of use	Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature	- 40 °C ~ + 60 °C
Service life	≥20 years
Application scope	FTTH FTTB FTTX Network
Atmospheric pressure	70kPa~106kPa
Insulation resistance	>2*10MΩ/500V(pc)
Tensile strength	>1200N

PC FTTH Fiber Optic Aerial Splice Enclosure 2.5kg 12 Core To 72 Core 0
