Dome Type Vertical 1 Inlets 4 Outlets 144 Cores Fiber Optical Cable Joint Storage Outlet Box

Model Number: FS-J-018
Cable Port: 1 Inlets 4 Outlets
Scope Of Application: 12 Core To 144 Core
Product Size: 470*235mm

Dome Type Vertical 1 Inlets 4 Outlets 144 Cores Fiber Optical Cable Joint Storage Outlet Box


Description:

  According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. Dome Type Vertical 1 Inlets 4 Outlets 144 Cores Fiber optical Cable Joint Storage Outlet Box, also known as Dome Type Vertical 1 Inlets 4 Outlets 144 Cores Fiber optical Cable Joint Storage Outlet Closure, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box is widely apply for the connecting of optical cable.Dome Type Vertical 1 Inlets 4 Outlets 144 Cores Fiber optical Cable Joint Storage Outlet Box are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.



Specification:

Product name Dome Type Vertical Fiber Optic Splice Box
Protection level IP68
Scope of application 12 core to 144 core
Gross weight 3.6 kg
Main material PC
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N



Features:

IP68 Water-proof design for outdoor uses;

The application of temperature: -40℃~60;

Grouping function: 1 inlet 4 outlet can meet most requirements;
Splice tray: using cascading structure, no need to take other splice tray when do operation;

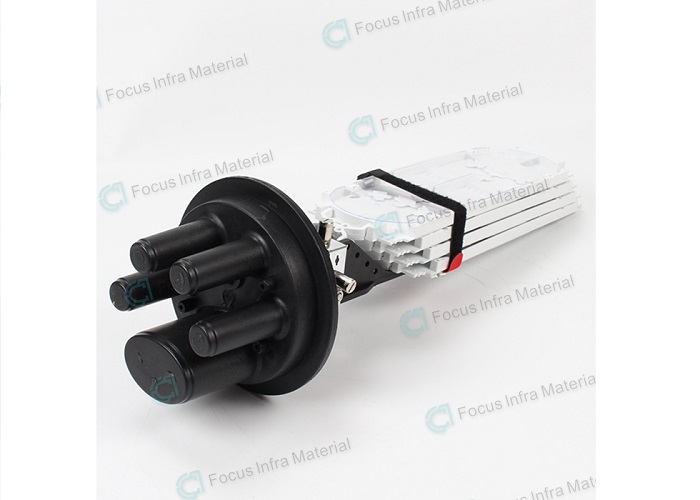

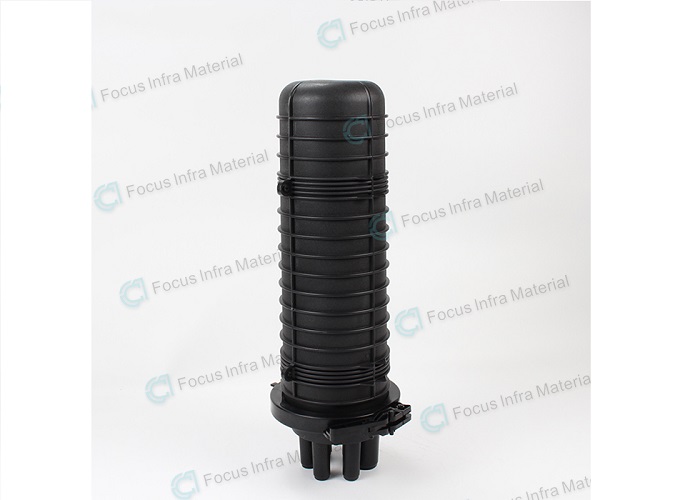

PC Cable Joint Fiber Optic Splice Closure IP68 For FTTH FTTB FTTX 0PC Cable Joint Fiber Optic Splice Closure IP68 For FTTH FTTB FTTX 1

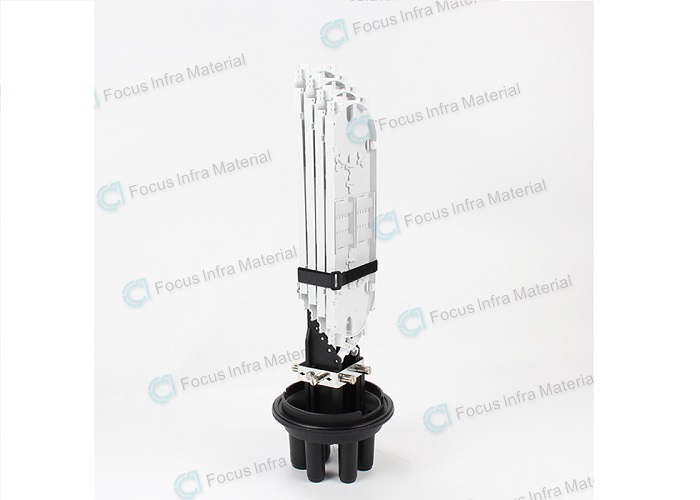

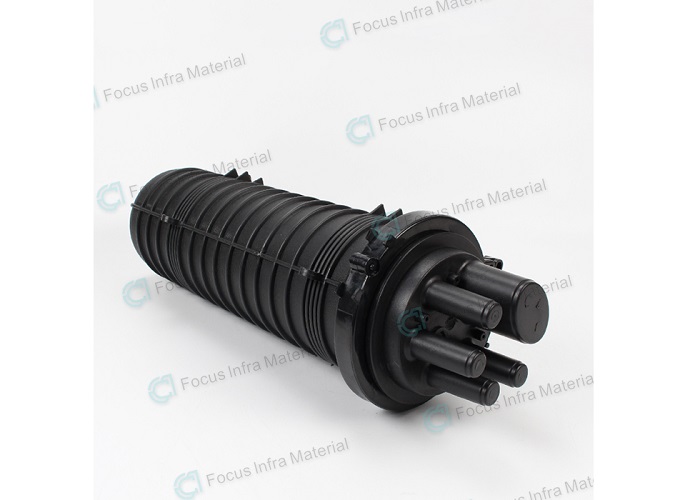

PC Cable Joint Fiber Optic Splice Closure IP68 For FTTH FTTB FTTX 3PC Cable Joint Fiber Optic Splice Closure IP68 For FTTH FTTB FTTX 4
